Awning Integrated Lighting — Outdoor COB Linear

Designed for articulated and cassette awnings: continuous COB light with UV‑resistant TPU jacket for true outdoor duty. Fits arm undersides, front bar and inside the cassette.

DC24VCOB Dot‑freeIP65/67UV / Salt‑sprayUL/ETL · CE/RoHS

Version: 2025-12-06 · Replace sandbox links with production URLs.

Typical Positions

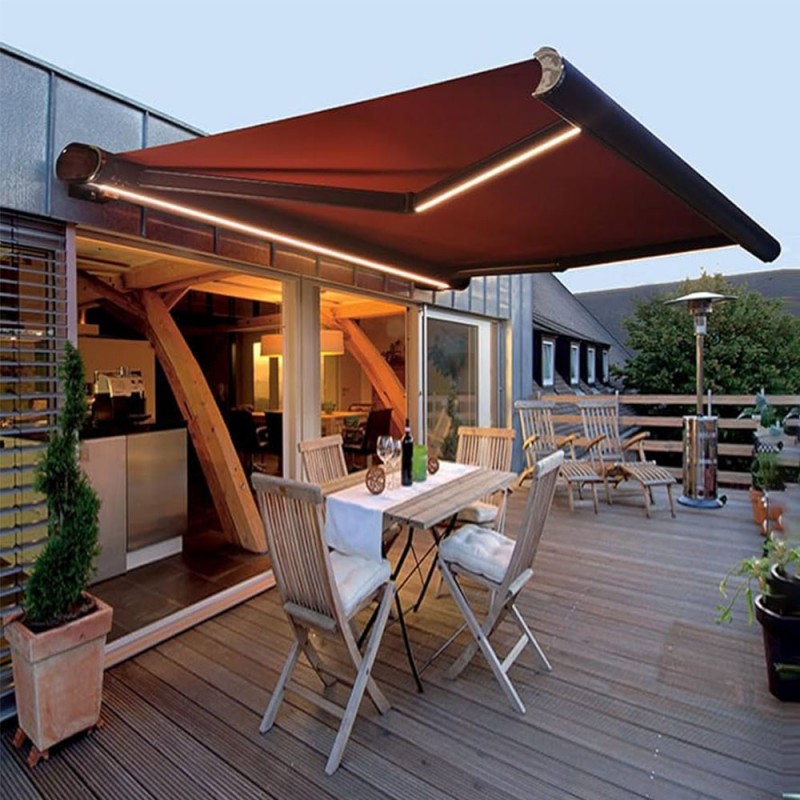

Underside of both arms (in aluminium profile) for table illumination
Front bar / fascia for perimeter glow
Service light inside cassette for night operation

Quick Estimator

Total length ≈ arm length × 2 + front‑bar length. Residential decks: 3–6 m/set; commercial models: 6–10 m/set.

PSU sizing = (W/m × total length) × 1.25–1.3; inject power every 3–5 m.

Recommended Light Engine (Example)

Voltage	Type	Width	W/m*	IP	Jacket	Cut	Downloads

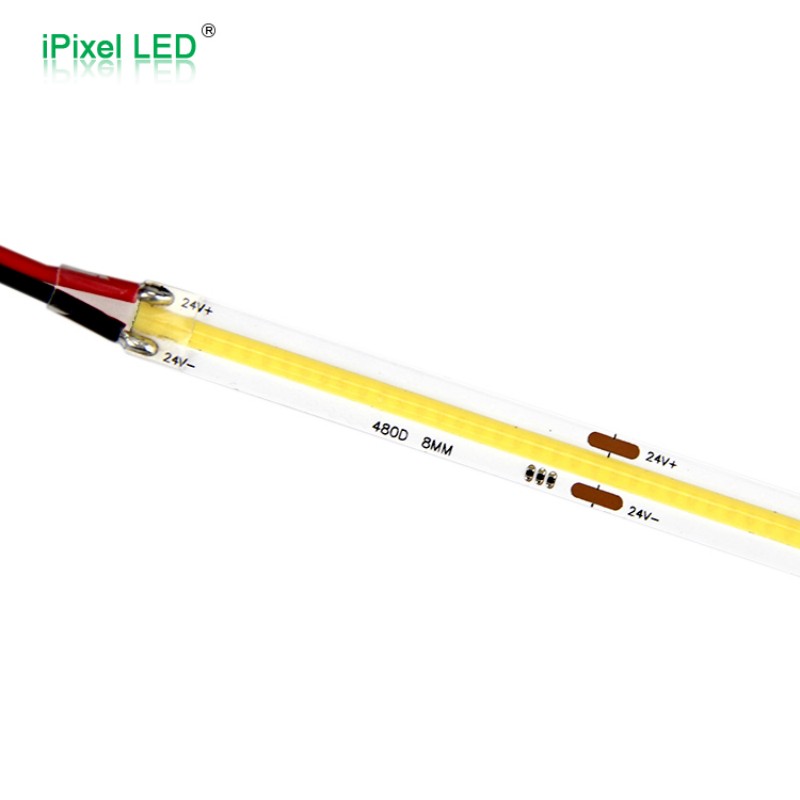

24V	COB continuous	8–10 mm	≈9–12	IP65/67	TPU/Silicone extrusion	50–100 mm	Spectrum Test (0.9 m, 3000 K)

*Power and output vary with CCT / density / driver. Size PSUs for 100% output.

Construction & Reliability

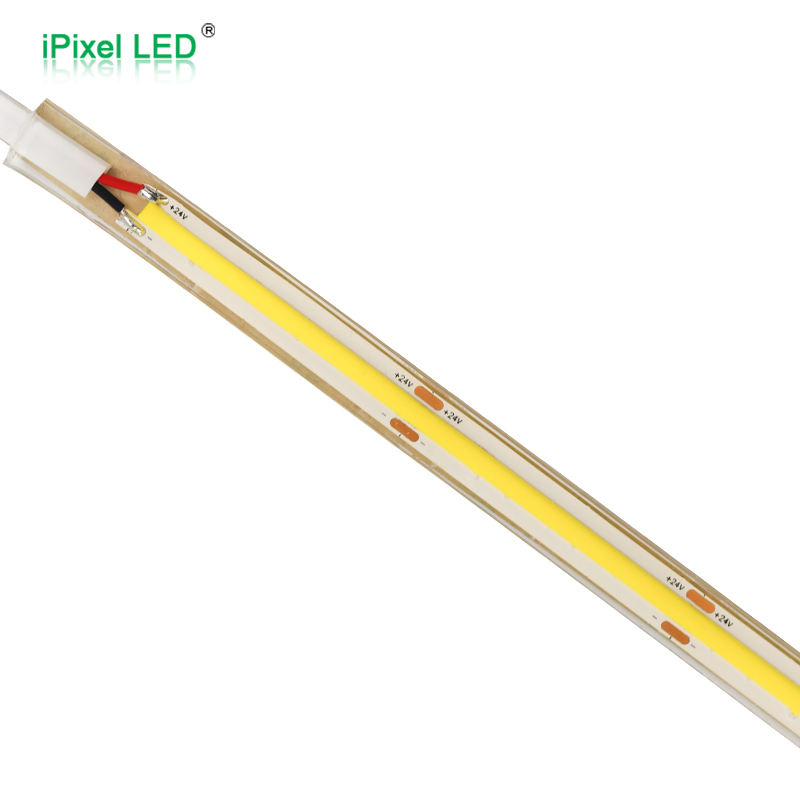

Jacket: UV‑resistant TPU (optional silicone), anti‑yellowing; matched end‑caps and potting.
Mechanics: cable slack and strain relief for repeated arm motion; anti‑twist sleeve and clips.
Electrical: 24‑V system to minimise drop; dual‑end injection every 3–5 m; M8/M12 waterproof quick‑connects.
Environment: include UV, salt‑spray, thermal shock and water‑spray tests in validation.

Gallery
