Coffee Machine LED Accent (Ultra‑Narrow Addressable RGB)

Pixel strips for top cover, bezel perimeter, water‑tank glow and knob scales. Compact, bright and service‑friendly for steam/vibration environments.

DC5V / DC12VAddressable RGBUltra‑narrow 3–5 mmHigh densityIP20 (internal) / IP54 (with sleeve)

Version: 2025-12-06 · Replace sandbox links with production URLs when publishing.

Applications & Benefits

Total length ≈ perimeter of the panel/tank × runs. Typical consumer machines use 0.8–1.6 m per unit; commercial units 2–4 m.

Voltage	Width	Pixel	W/segment	Cutting	IP	Notes	Downloads

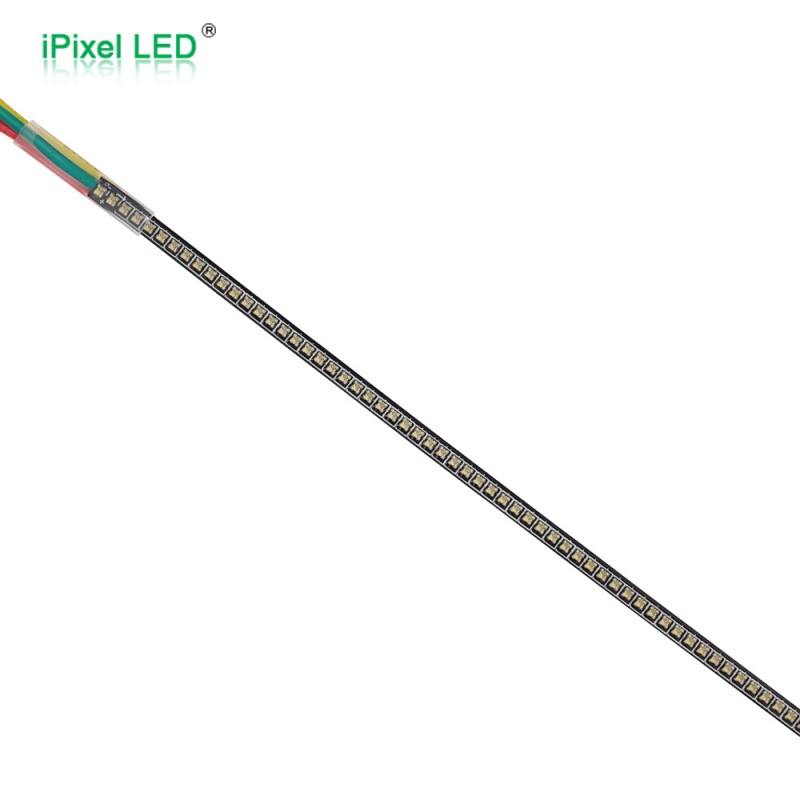

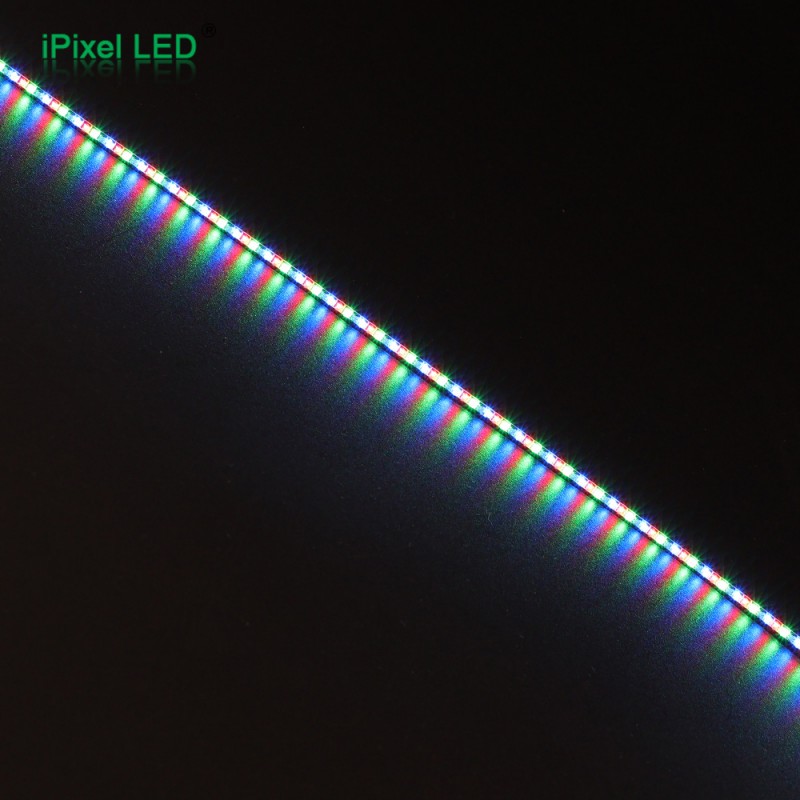

5V	≈3–5 mm	Addressable RGB	see report	Custom segment (e.g., 330 mm)	IP20	Ultra‑narrow, bend‑friendly for tight paths	Spectrum Report
12V	8–10 mm	Addressable RGB	—	per‑LED / per‑2 LEDs	IP20/54	Longer runs with smaller voltage drop	Datasheet

Example report is a 330‑mm 5‑V segment, handy for modular assembly behind bezels.
