采用导光结构实现无阴影的镜面照明，可集成触控、除雾与调光模块。
总米数 ≈ mirror width × light lines per mirror × no. of mirrors.
电源功率估算 = (W/m × total meters) × 1.25 余量. Ensure 正面 IP44 and safe wiring practices.
总米数 ≈ mirror width × light lines per mirror × no. of mirrors. 电源功率估算 ≈ (W/m × total meters) × 1.25 余量.
| 电压 | W/m | lm/m | 显色指数 | 色温 | 剪切间距 | 宽度 | 防护等级 | 备注 | 资料下载 |
|---|---|---|---|---|---|---|---|---|---|

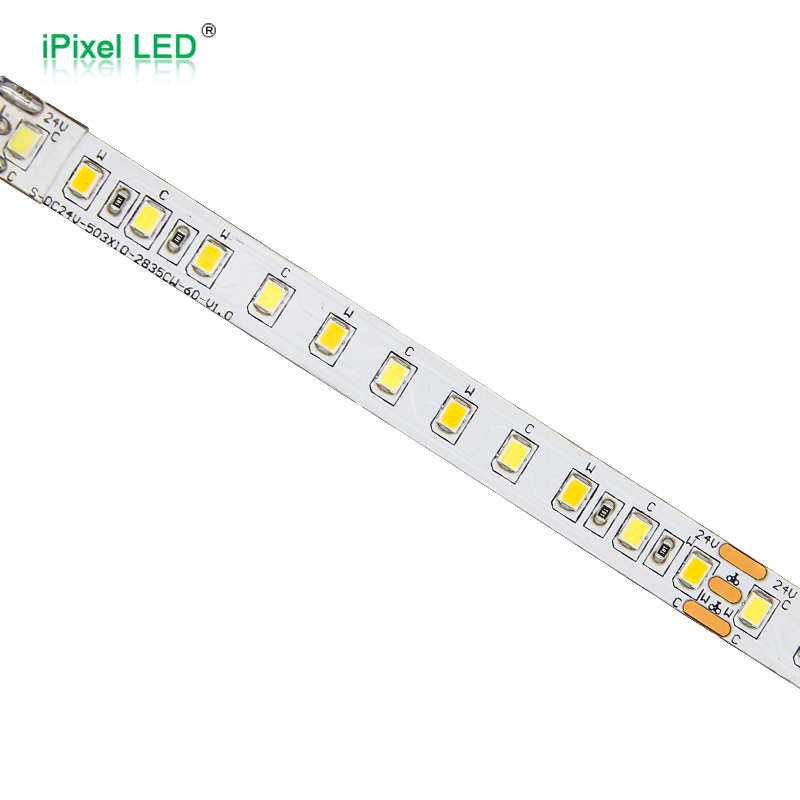

| 24V | 8–10 | ~700–1000 | ≥90 | 4000–5000K | 50 mm | 8/10 mm | IP20/44 | Edge‑lit main | Spectrum Report |
| 12V | 4.8–7.2 | ~400–700 | ≥90 | 3000–4000K | 25/33 mm | 5/8 mm | IP20 | Back‑glow/ambient | Datasheet |
倾向中性至冷白以保留细节；通过扩散罩控制眩光。
Coverage depends on actual certified models and materials. Contact us for the certificate list per model.
4000–5000K keeps skin tones natural and readable.
Yes—integrate a defog module with correct isolation.
Front splash zones should be IP44; drivers kept dry.
