Prioritize readability and color fidelity while avoiding glare. Slim 24V strips with aluminum profiles and opal diffusers deliver even brightness across the bay.
总米数 ≈ shelf width × no. of shelves × no. of bays. A common bay is 0.9–1.2 m wide with 5–6 shelves → about 4.5–7.2 m per bay.
电源功率估算 = (W/m × total meters) × 1.25 余量. Prefer 24V to minimize voltage drop on longer runs.
总米数 ≈ bay width × shelves per bay × number of bays. 电源功率估算 ≈ (W/m × total meters) × 1.25 余量.
| 电压 | W/m | lm/m | 显色指数 | 色温 | 剪切间距 | 宽度 | 防护等级 | 备注 | 资料下载 |
|---|---|---|---|---|---|---|---|---|---|

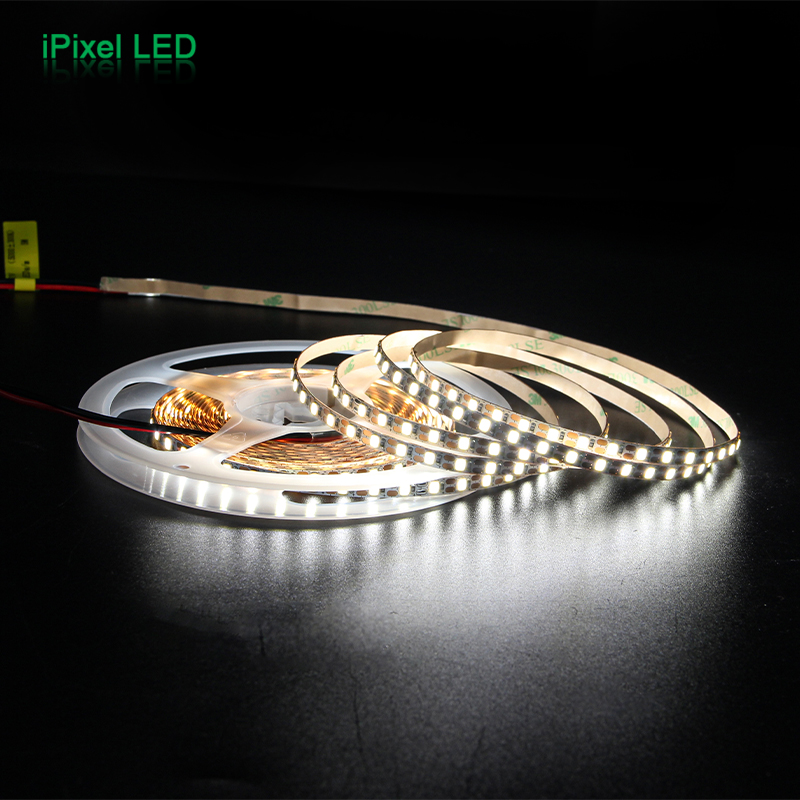

| 24V | 6–10 | ~700–1100 | ≥90 | 6500K | 50 mm | 8/10 mm | IP20 | Main under‑shelf lighting; even coverage | Spectrum Report |
| 24V | 12 | ~1200 | ≥95 | 4000–5000K | 50 mm | 10 mm | IP20/54 | Higher CRI option for beauty/health categories | Datasheet |
From the 1‑meter test sample: flux ≈ 638.8 lm, efficacy ≈ 104 lm/W, Ra ≈ 93.9, TLCI ≈ 94.4, peak wavelength ≈ 454 nm. See report for details.
Coverage depends on actual certified models and materials. Contact us for the certificate list per model.
Most pharmacy bays are 0.9–1.2 m wide with 5–6 shelves, so 4.5–7.2 m per bay. Add top/backlight as needed.
24V reduces current and voltage drop on long or multi-branch runs, delivering more uniform brightness per shelf.
IP20 is typical for indoor cabinets. Consider IP54 only for special cleaning policies; ensure proper thermal design.
Yes. We can provide compatible drivers and dimming modules. Door/PIR triggers are also available.
