典型安装方式
- 前沿下照：强调标签与产品正面
- 层板下 30–60° 倾角以降低眩光
- 立柱/背板勾边用于分区与导视
快速估算
Per‑bay length ≈ shelf width × number of tiers (e.g., 0.9–1.2 m × 4–6 tiers → 3.6–7.2 m/bay).
PSU sizing = (W/m × total length) × 1.25–1.3; inject power every 4–6 m at 24 V, 2–3 m at 12 V.
Optimised for supermarkets, drugstores and brand fixtures: high CRI, low glare and uniform light. Compatible with shelf grooves and aluminium profiles.
Per‑bay length ≈ shelf width × number of tiers (e.g., 0.9–1.2 m × 4–6 tiers → 3.6–7.2 m/bay).
PSU sizing = (W/m × total length) × 1.25–1.3; inject power every 4–6 m at 24 V, 2–3 m at 12 V.
| 电压 | 类型 | 光学 | W/m* | 显色指数 | 剪切 | 资料下载 |
|---|---|---|---|---|---|---|
| 24V | COB dot‑free | Milky diffuser | 9–12 | Ra 90+ | 50–100 mm | Spectrum Test (12‑V sample for reference) |

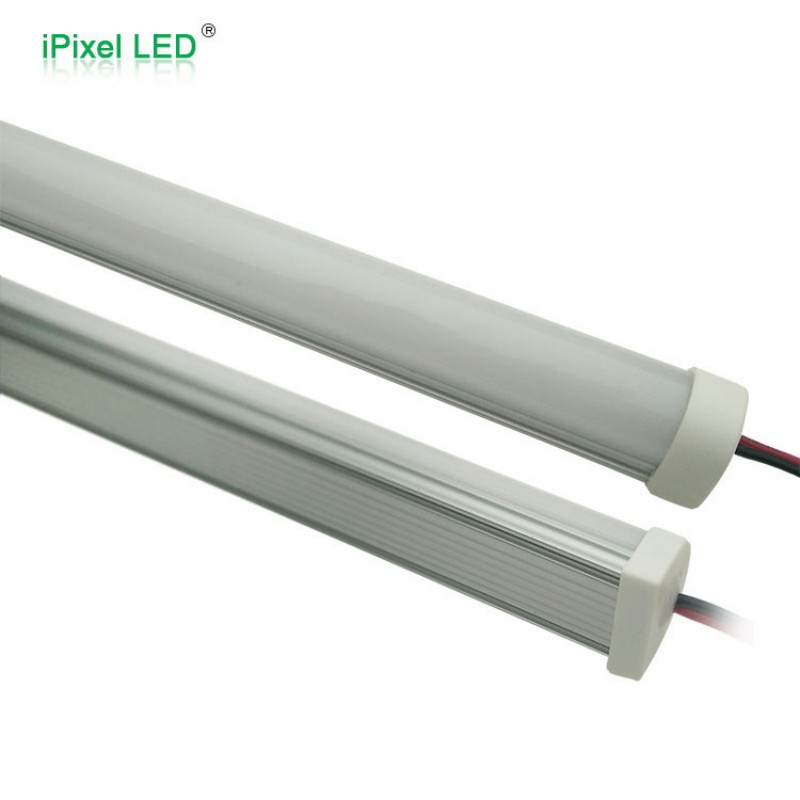

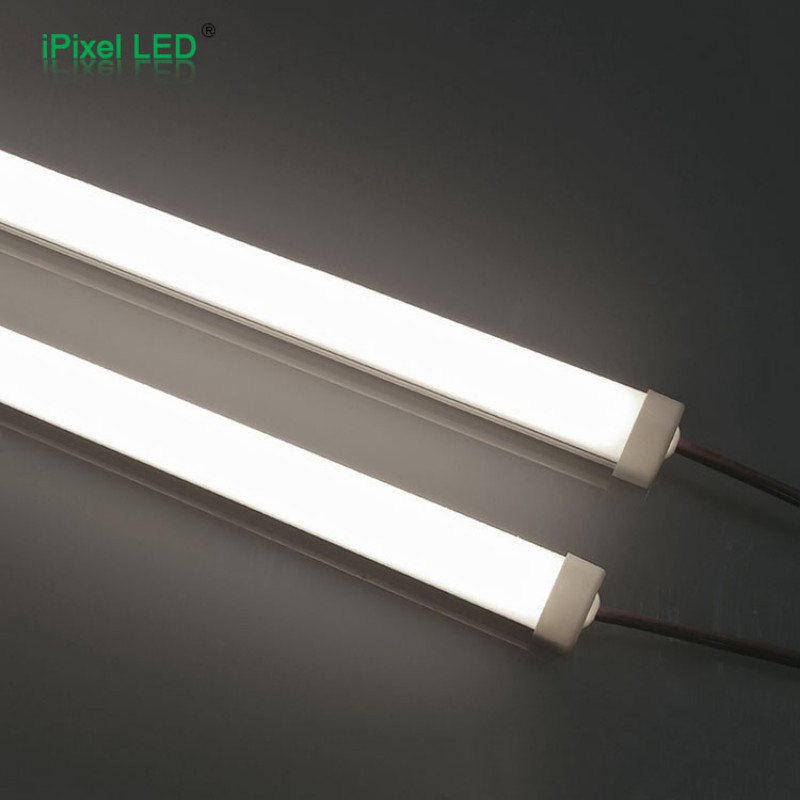

| 12V | Aluminium rigid bar | Frosted lens, 30–60° tilt | 6–10 | Ra 80/90 | Module pitch | 测试报告 |
*Power/output vary with CCT and density; size PSUs for full output.
