12x12mm单色正发光霓虹灯带DC12V
描述
Description

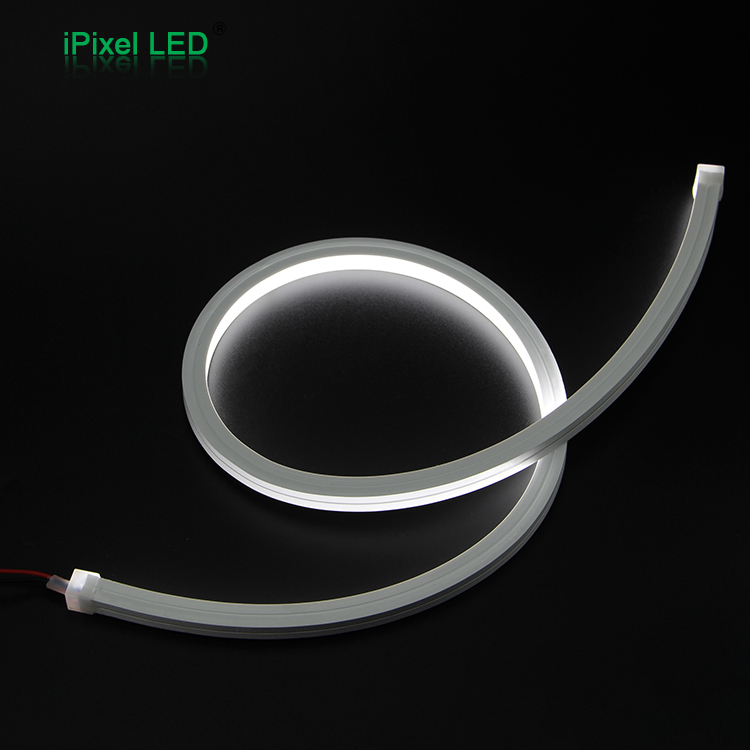

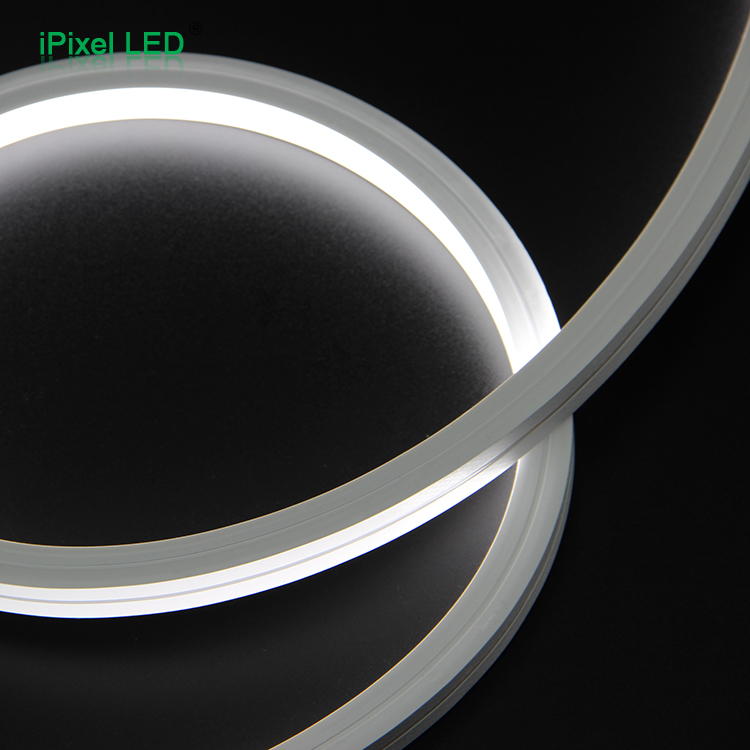

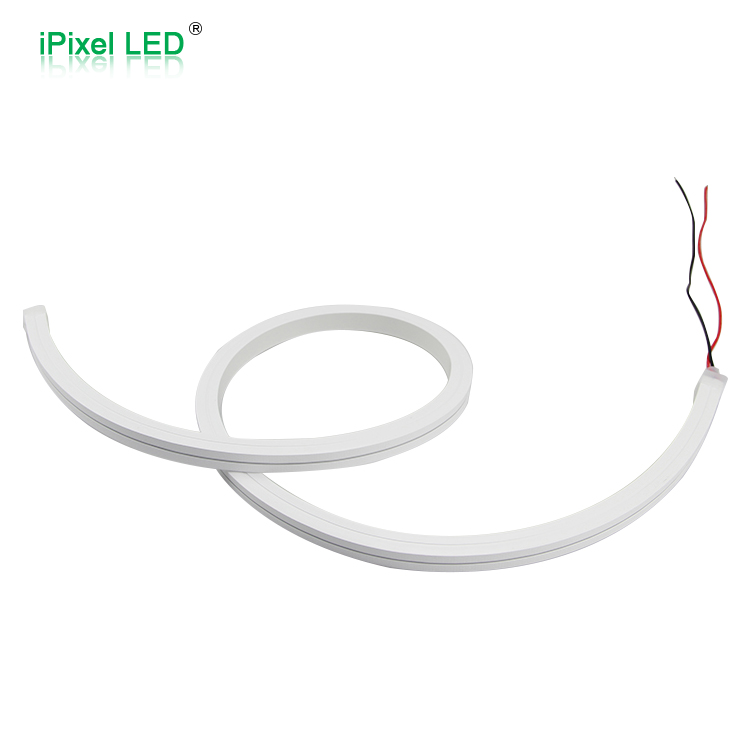

Static single color LED Neon flexible strip with silicone materials, super flexible and bendy.
It with a solid chunk of translucent silicone rubber as a diffuser, uniform light distribution.
SMD LED chip fire resistance, and the casing is Anti - UV,
Anti - Corrosion, very strong and durable.
The light is top view, and mininum cutting unit is 25mm, minimum bending diameter is 100mm
Share to
规格说明
特点
| 型号 | N012120BB1LZ | N012120BC1LZ |
| 电压 | DC12V | DC24V |
| 灯珠数量 | 120LEDs/m | 120LEDs/m |
| 可剪长度 | 25mm | 50mm |
| 色温 | 3000K/4000K/6500K | 3000K/4000K/6500K |
| 外形尺寸 | 5000*12*12mm | 5000*12*12mm |
| 材质 | Silicon | Silicon |
| 功率 | 10W/m | 10W/m |
| 流明/米 | 540lm | 540lm |
| 工作温度 | -25℃ ~ 60℃ | -25℃ ~ 60℃ |
备注：
1.以上参数基于1M标准产品进行测试 :
2.光通量允许有+10%的误差范围:
3.以上参数均为典型值;
4.常规霓虹灯条长度大于5米到15米需要两端供电;
5:定制长度时公差存在，需要核实
6.如有变动，不另行通知。
