10x18mm single color side emitting led neon strip DC24V
描述
Features
10x18 Three sided positive glowing neon strip, which can be bent up
and down;Light source: high-efficiency lamp beads;· Process material: high light transmittance environmental protection
grade silicone material, good flexibility of silicone material;
· Optical design: Unique optical light distribution structure design,
uniform light on the surface without shadows, No spot, very soft light;
· Appearance design: simple and stylish, exquisite and unique, bringing
better lighting performance for indoor/outdoor applications;
· Product certification: UL, CE, RoHS;
Share to
规格说明
Product Parameter
| PN | N010120BC1LZ (N1018) |
| SMD Type | SMD2835 |
| LED Qty/m | 120LEDs/m |
| Voltage | DC24V |
| CCT | 3000K/4000K/6500K |
| Luminance/m | 540lm |

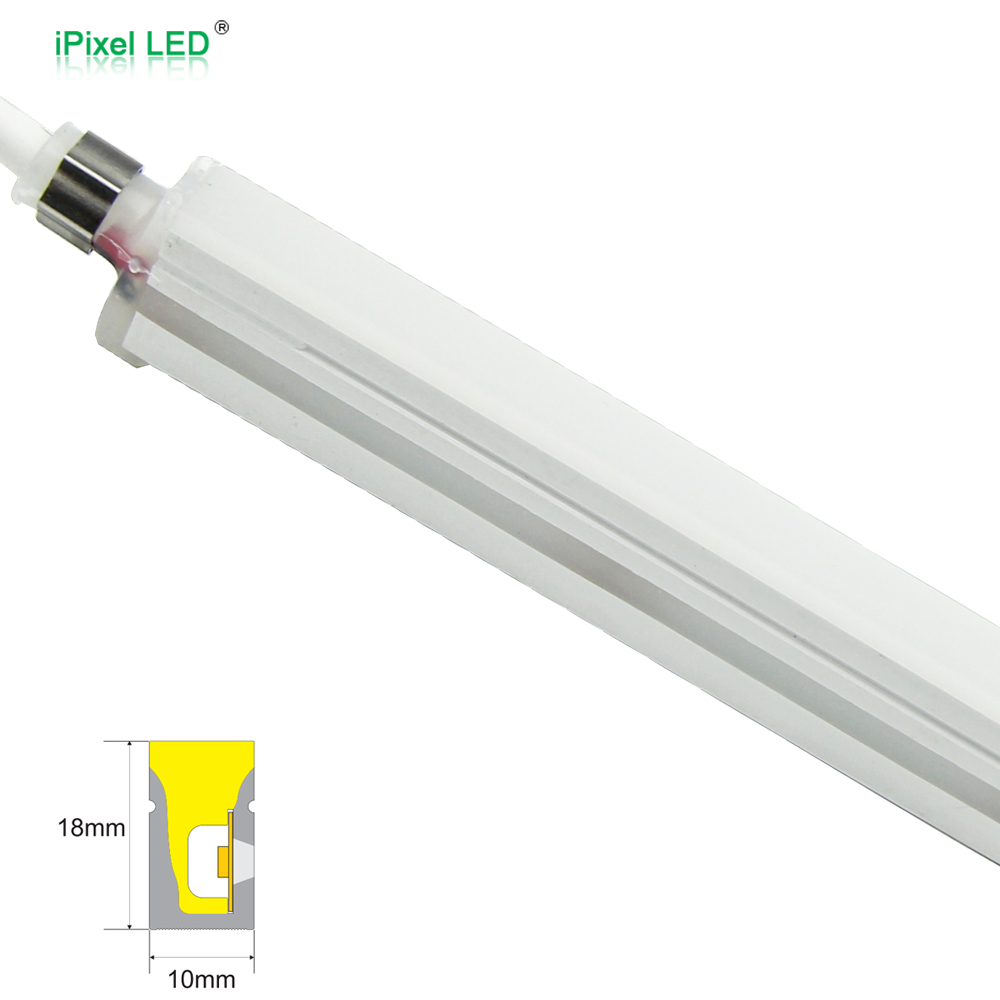

| Dimension | (5025±15)*10*18mm |
| Material | Silicon |
| Power | 10W/m |
| Cutting unit | 50mm |
| O.T | -25℃ ~ 60℃ |
1. The above parameters are tested based on 1M standard products;
2. The luminous flux is allowed to have an error range of ±10%;
3. The above parameters are typical values;
4. The brightness with in 15M is consistent even if one end is powered;
5. Subject to change without prior notice.
6. Length tolerance applies. Actual product dimensions may vary
Note: Length tolerance applies. Actual product dimensions may vary
