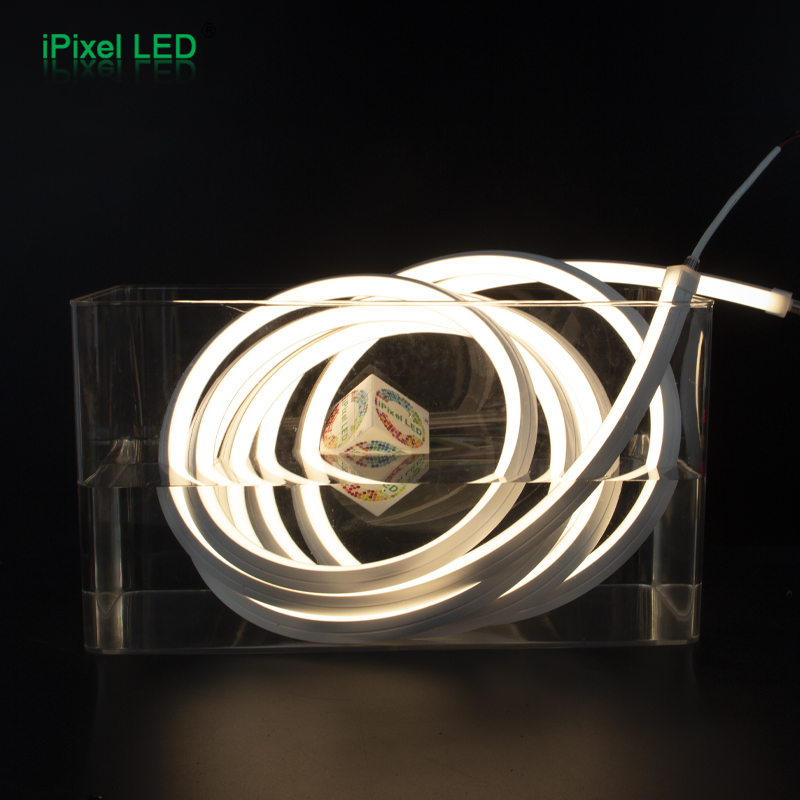

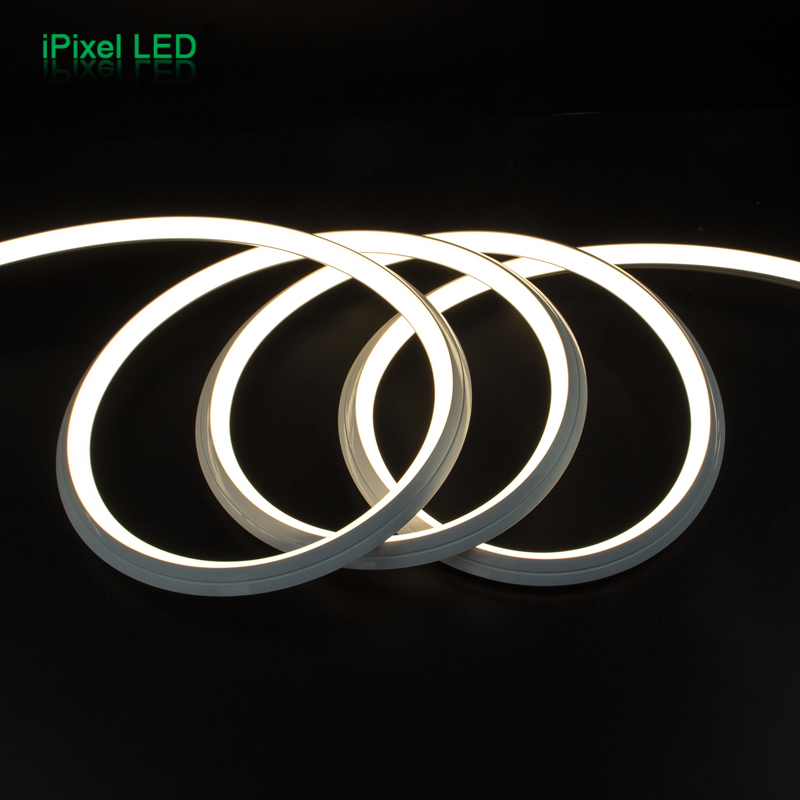

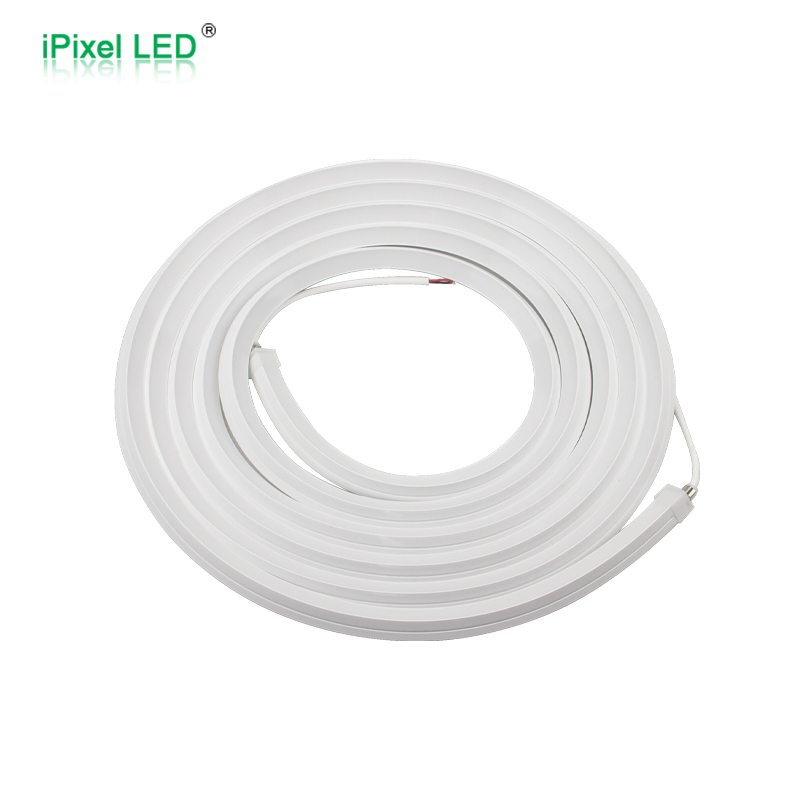

15x15mm 3D Single color LED neon flex DC12V/DC24V
描述
· 15X15mm single-sided led neon flex strip, you can bend up and down
· Light source: highlights LED chips;
· Craft material: high light transmission and environmental friendlysilicone material, good flexibility of silicone material;
· Optical design: Unique optical light structure design, the surface isuniform, and the light is very soft;
· Exterior design: simple and fashionable, exquisite and unique bringsbetter lighting performance to indoor/outside applications;
· Product certification: UL, CE, RoHS;
· Environmental characteristics: salt tolerance, corrosion resistance,flame retardant, UV resistance;
· Work / storage temperature: TA: -25 ~ 55 ℃ / 0 ℃ ~ 60 ℃;
· Product application: signature lighting, outdoor/interiordecoration, architectural contour application;
· 3 years of quality insurance, working life ≥36000 hours
· Light source: highlights LED chips;
· Craft material: high light transmission and environmental friendlysilicone material, good flexibility of silicone material;
· Optical design: Unique optical light structure design, the surface isuniform, and the light is very soft;
· Exterior design: simple and fashionable, exquisite and unique bringsbetter lighting performance to indoor/outside applications;
· Product certification: UL, CE, RoHS;
· Environmental characteristics: salt tolerance, corrosion resistance,flame retardant, UV resistance;
· Work / storage temperature: TA: -25 ~ 55 ℃ / 0 ℃ ~ 60 ℃;
· Product application: signature lighting, outdoor/interiordecoration, architectural contour application;
· 3 years of quality insurance, working life ≥36000 hours
Share to
规格说明
Product Parameter
| PN | N015120BB1LZ(N1515) | N015120BC1LZ(N1515) |
| Voltage | DC12V | DC24V |
| Cutting unit | 25mm | 50mm |
| LED Quantity | 120LEDs/m | 120LEDs/m |
| CCT | 3000K/4000K/6500K | 3000K/4000K/6500K |

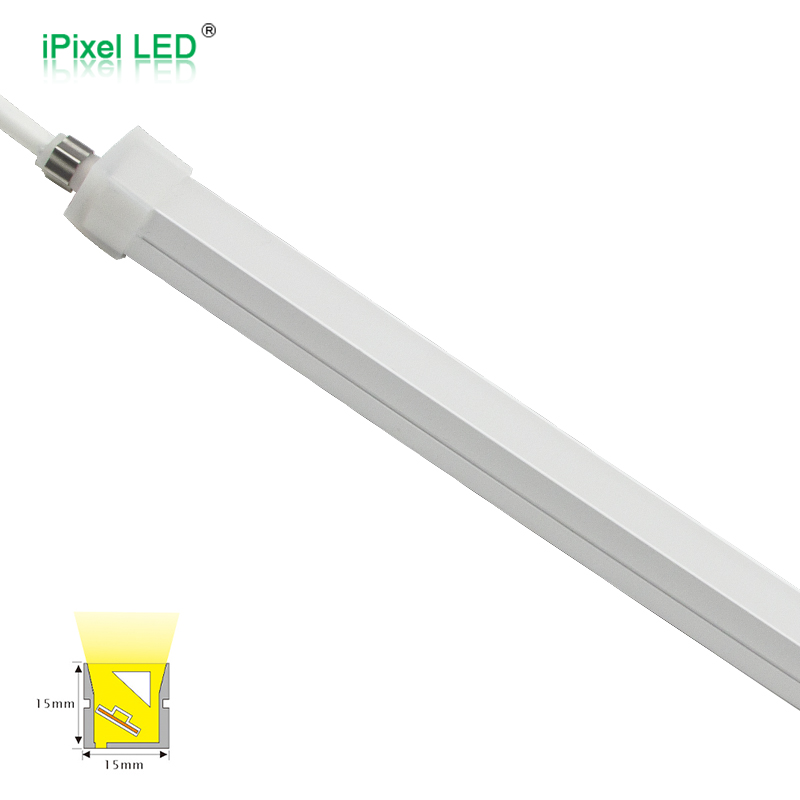

| Dimension | 5000*15*15mm | 5000*15*15mm |
| Material | Silicon | Silicon |
| Power | 10W/m | 10W/m |
| Lumens/m | 485lm | 485lm |
| O.T | -25℃ ~ 60℃ | -25℃ ~ 60℃ |
1. The above parameters are tested based on 1M standard products;
2. The luminous flux is allowed to have an error range of ±10%;
3. The above parameters are typical values;
4. The brightness with in 15M is consistent even if one end is powered;
5. Subject to change without prior notice.
6. Length tolerance applies. Actual product dimensions may vary
