COB2.7mm超薄可寻址RGB灯带DC5V
描述
Description

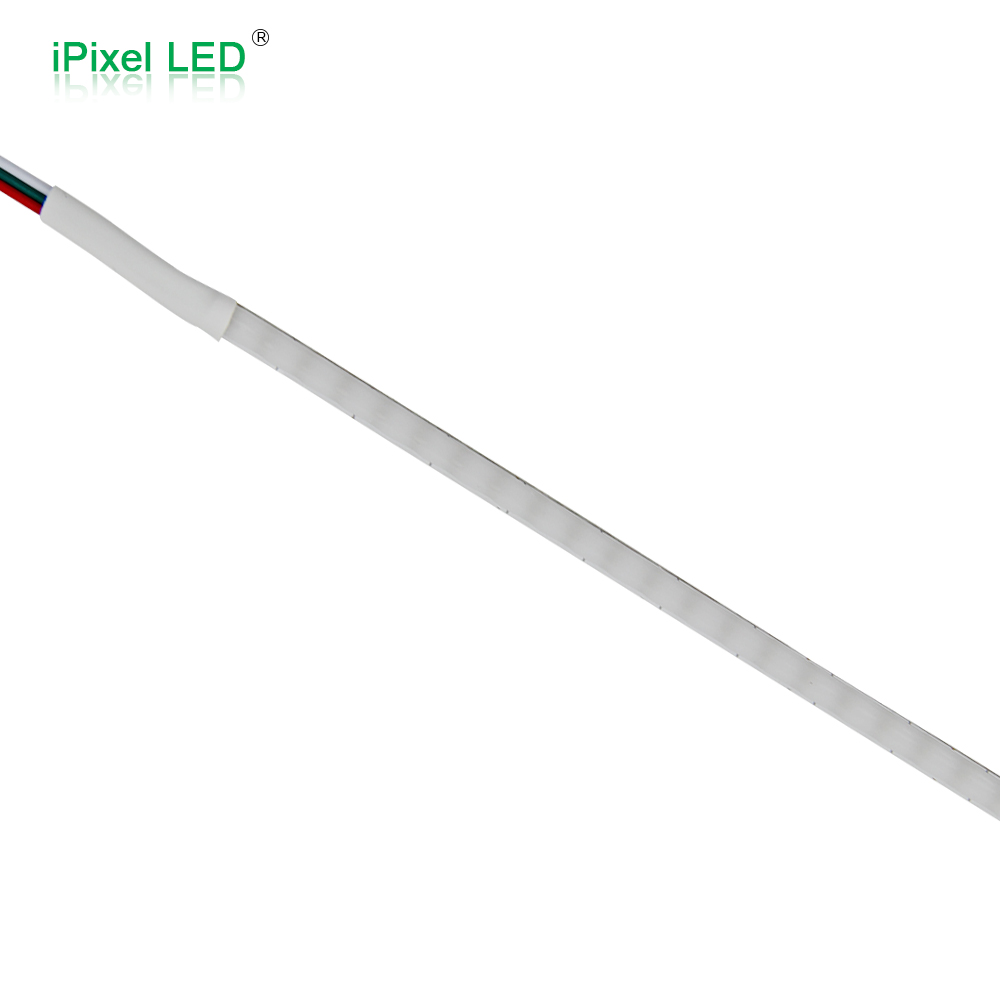

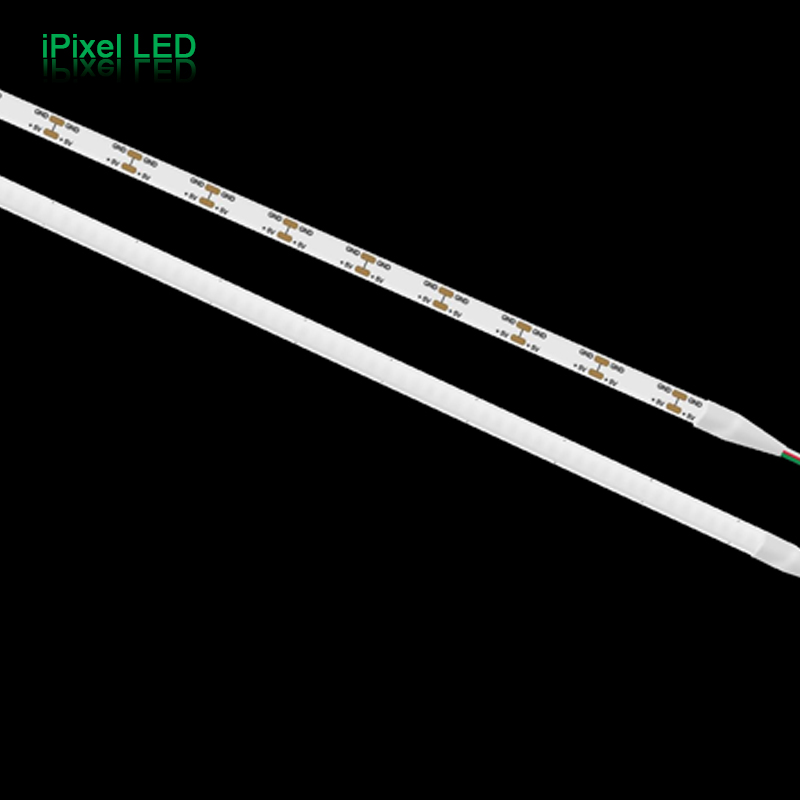

-This is a COB LED strip,Super Narrow 160LEDs/m
-The chip mounted on FPC directly,uniform light no hot spot /shadow
-Input voltage is DC5V
-Flexible PCB,the FPCB color is white
-The FPCB width is 2.7mm
-Standard 1M/roll, length can be customized
Share to
规格说明
产品参数
| 型号 | S003160ZA3SF |
| 电压 | DC5V |
| 灯珠 | RGB COB |
| 灯数 | 160LEDs/m |
| 发光角度 | 140° |
| 流明 | R:50 G:110 B:30 |
| 控制芯片 | SPI-WS2811 |
| 外形尺寸 | 1000x2.7mm |
| 可剪长度 | 12.5mm |
| 材质 | FPC |
| 功率 | 10W/m |
| 防水等级 | IP20 |
| 工作温度 | -25℃ ~ 60℃ |
外形尺寸
IP Rate
