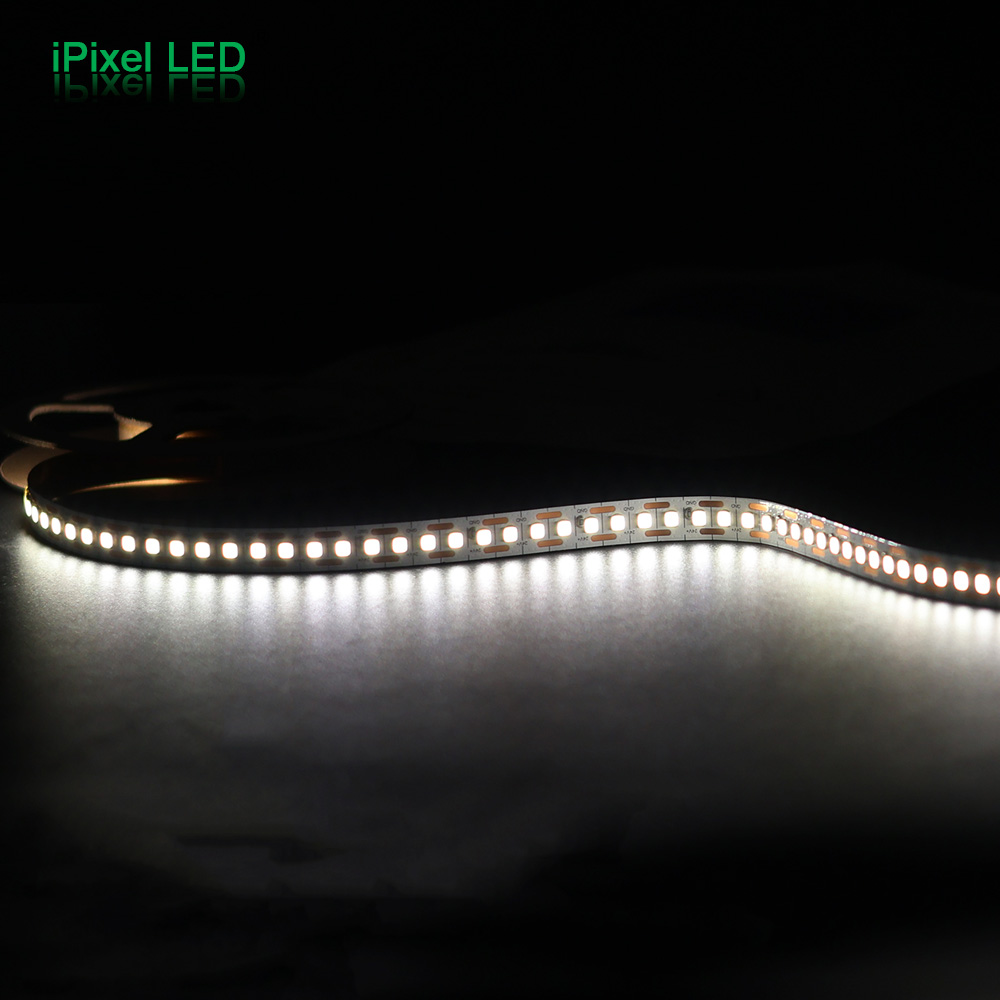

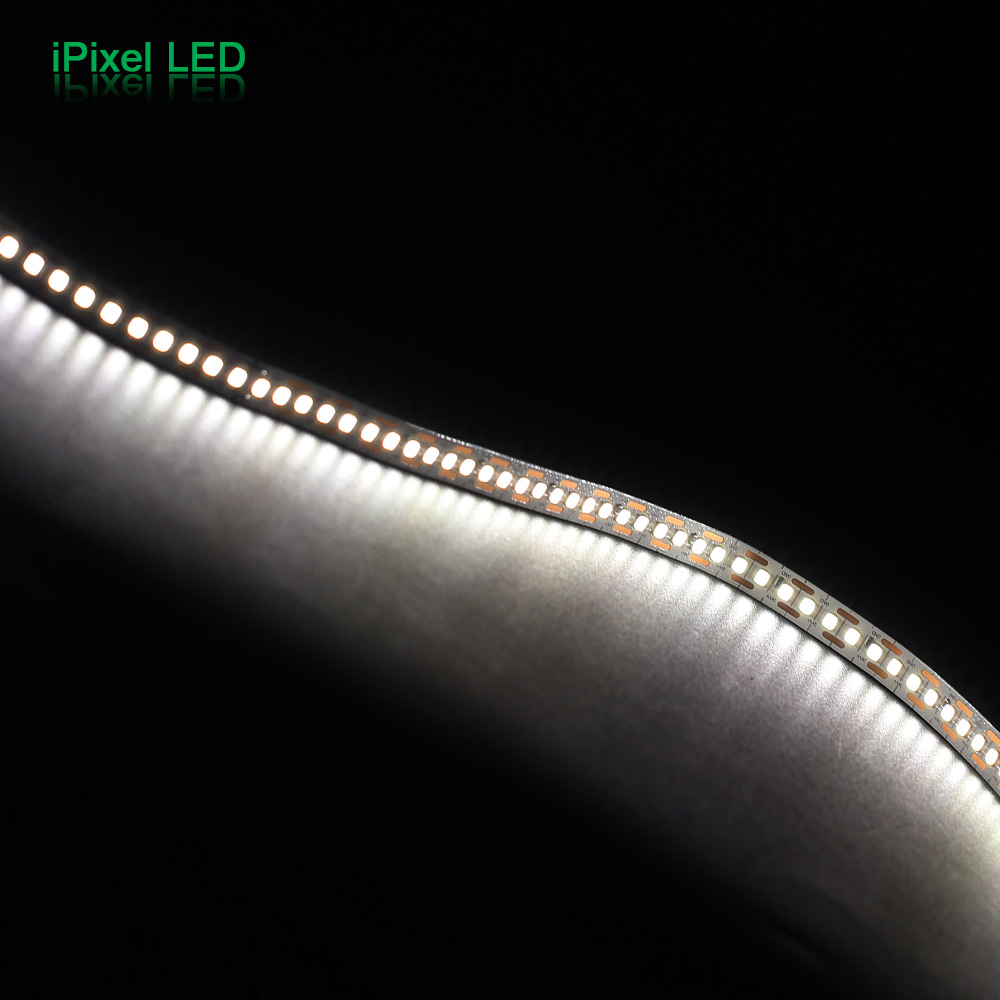

SMD 2835 Mini cut single color 10mm LED strip 160EDs/m DC24V
描述
Description
-SMD 2835 LED chip, 160LEDs/m,
high luminance efficiency and high Ra
-Input voltage DC24V

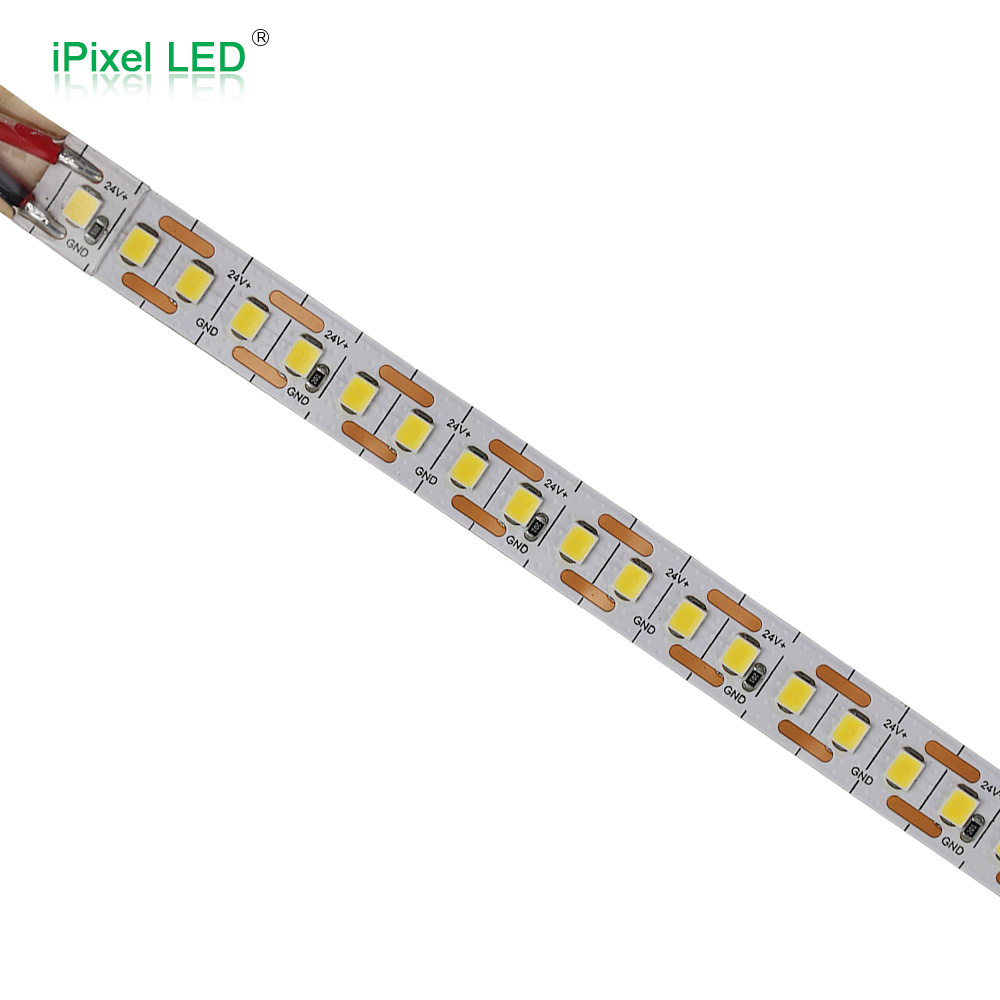

-Flexible PCB, FPC color: white, 10mm width
-Standard length 5m per roll, the length also can be customized
Share to
规格说明
Product Parameter

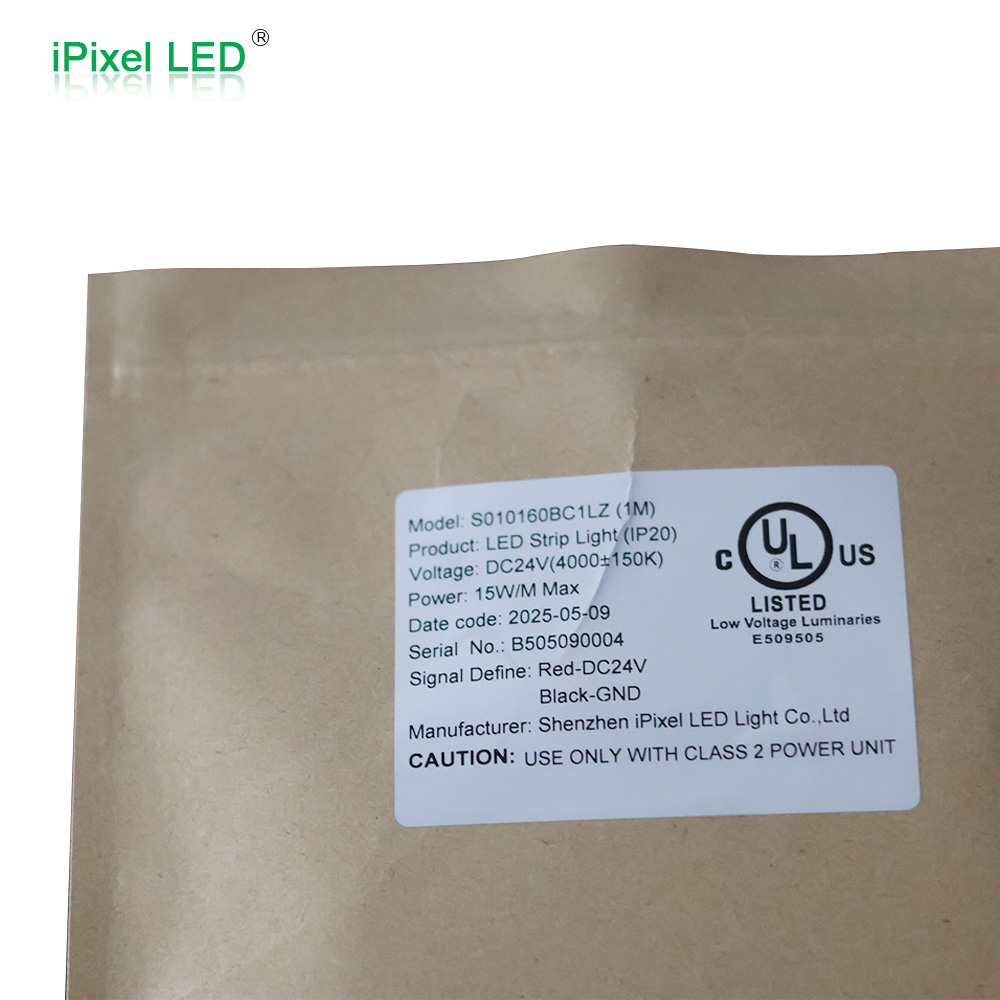

| PN | S010160BC1LZ |
| Voltage | DC24V |
| LED Type | SMD 2835 |
| Power | 13W/m |
| LED Quantity | 160LEDs/m |
| Color | 3000K/4000K/6500K |
| Lumen | 2047lm/m |
| Dimension | 5000*10m |
| Cutting unit | 6.25mm/1LED |
| Materiar | FPC |
| RA | 90 |
| IP Rate | IP20 |
| O.T | -25℃ ~ 60℃ |
Dimension (unit:mm)
