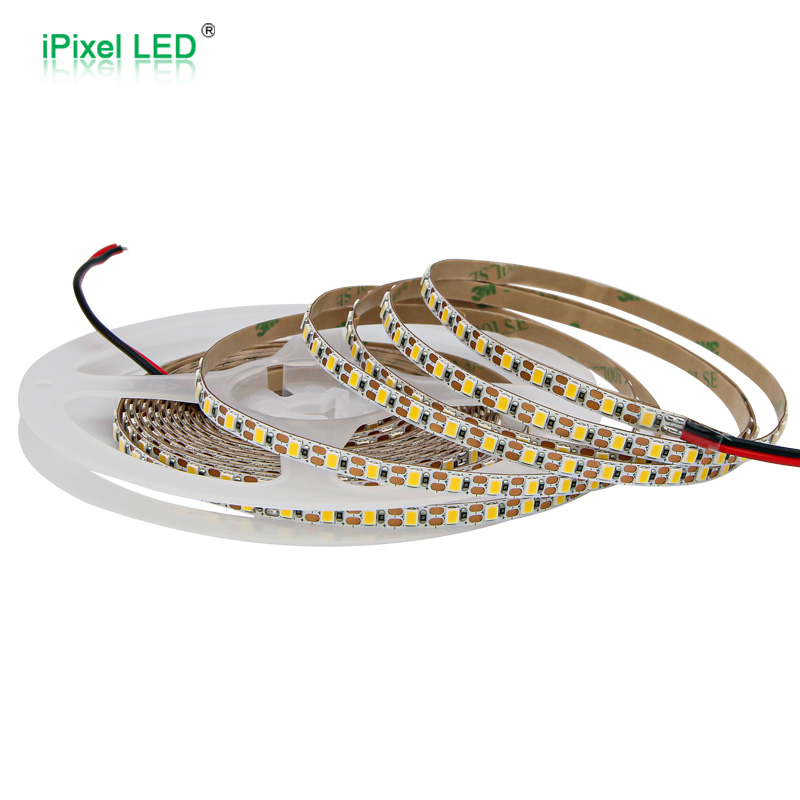

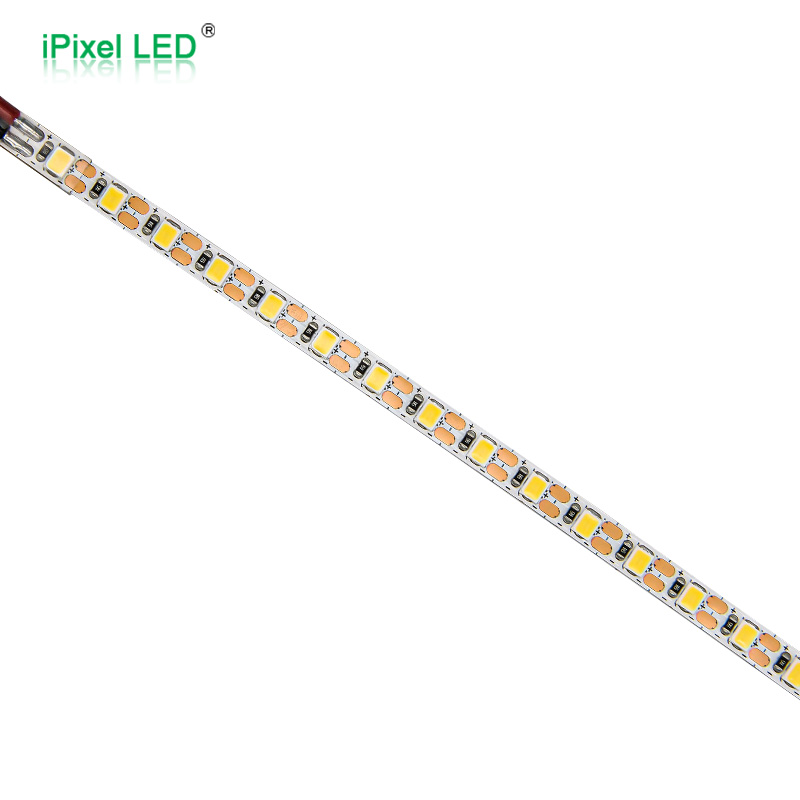

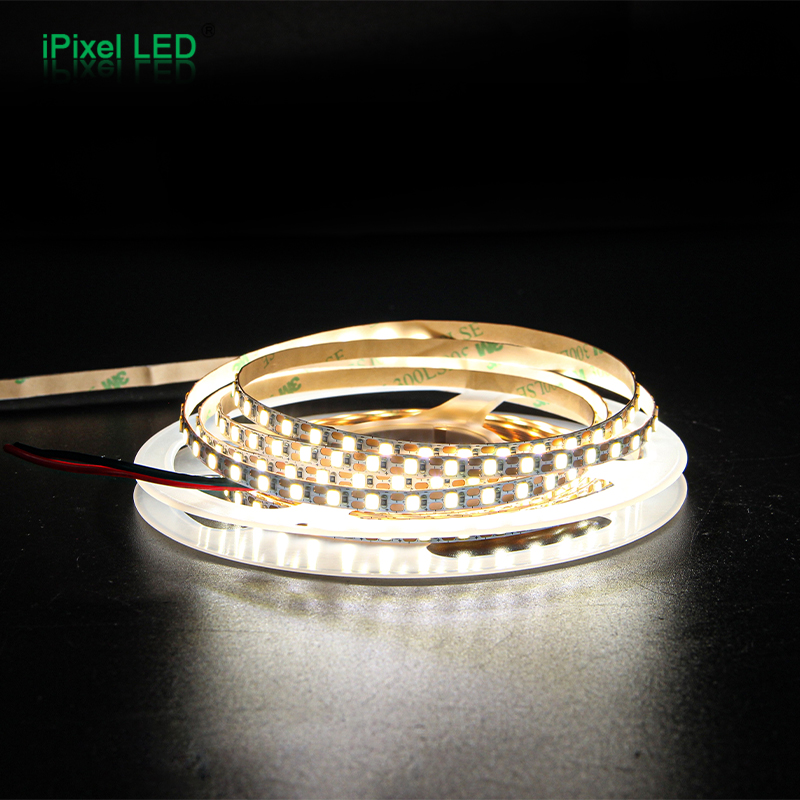

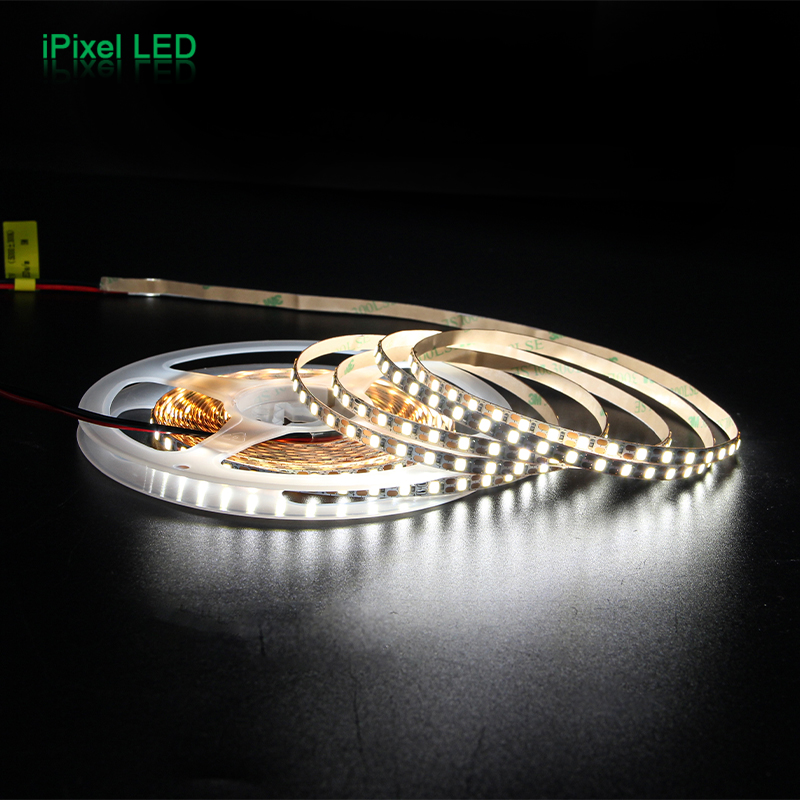

5mm SMD2835 Mini cut Single Color Led Strip 120LEDs/m DC12/24V
描述
Description
- 2835 high brightness led, high purity gold line,
SANAN chip
- 120LEDs/M, high luminance efficiency
- 5mm flexible PCB, FPC color: white
- Standard length 5m per roll, the length also can be
customized
Share to
规格说明
Product Parameter
| PN | S005120BB1LZ(M) | S005120BC1LZ(M) |
| Voltage | DC12V | DC24V |
| LED Type | SMD 2835 | SMD 2835 |
| Cutting unit | 8.33mm/1LED | 8.33mm/1LED |
| LED Quantity | 120LEDs/m | 120LEDs/m |
| Color | 3000K/4000K/6500K | 3000K/4000K/6500K |
| Lumen | 641lm | 641lm |
| Dimension | 5000*5mm | 5000*5mm |
| Materiar | FPC | FPC |
| Power | 6W/m | 6W/m |
| IP Rate | IP20 | IP20 |
| O.T | -25℃ ~ 60℃ | -25℃ ~ 60℃ |
Dimension (unit:mm)
