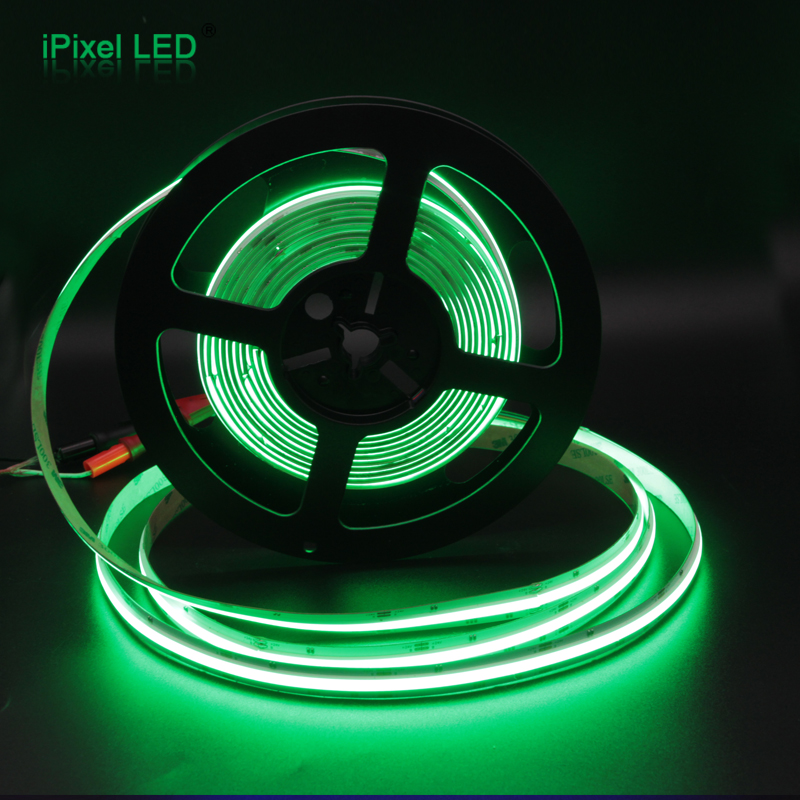

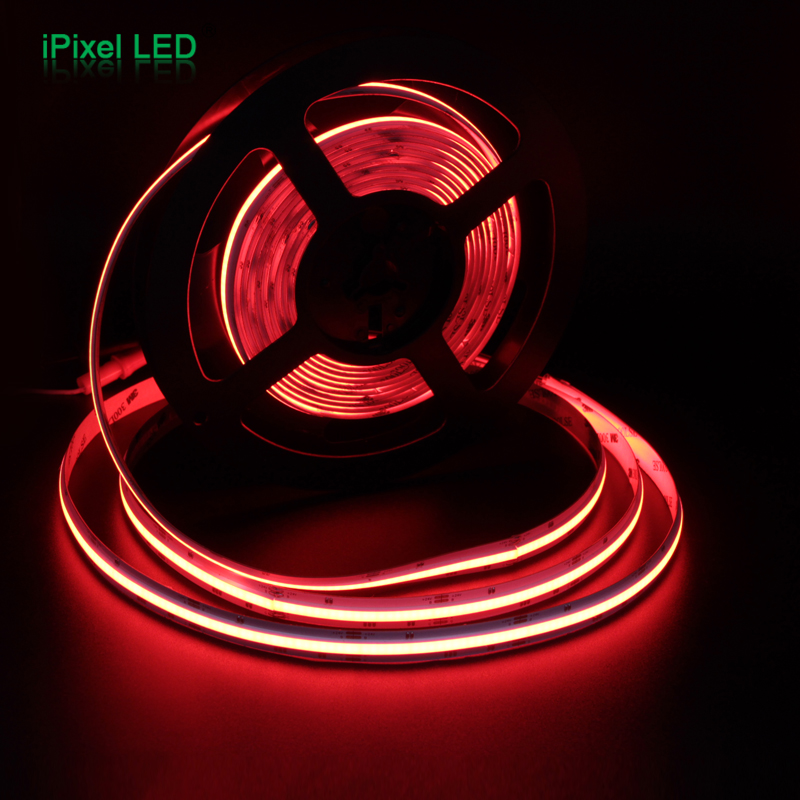

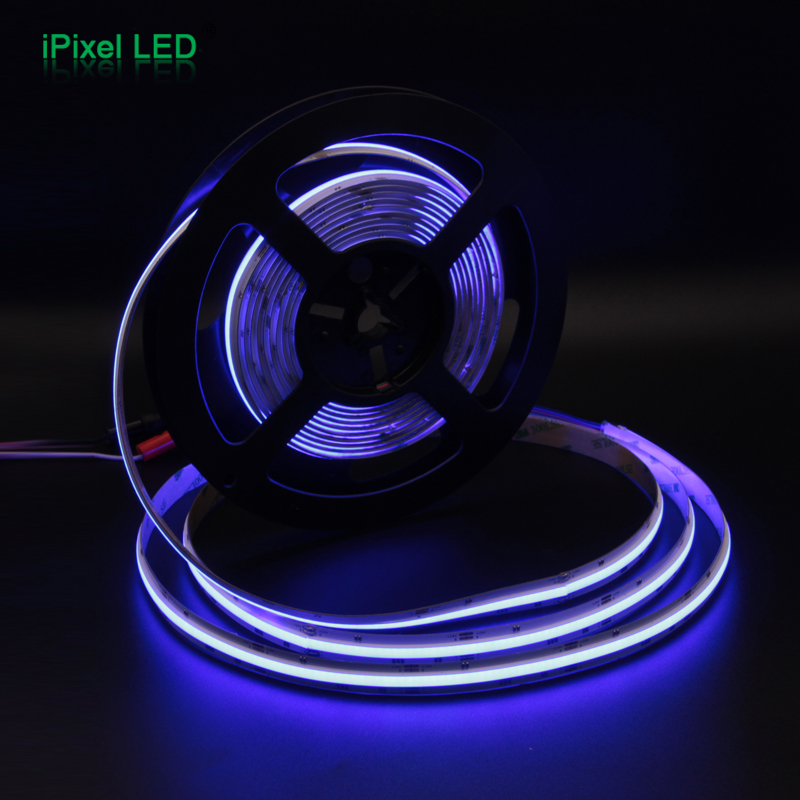

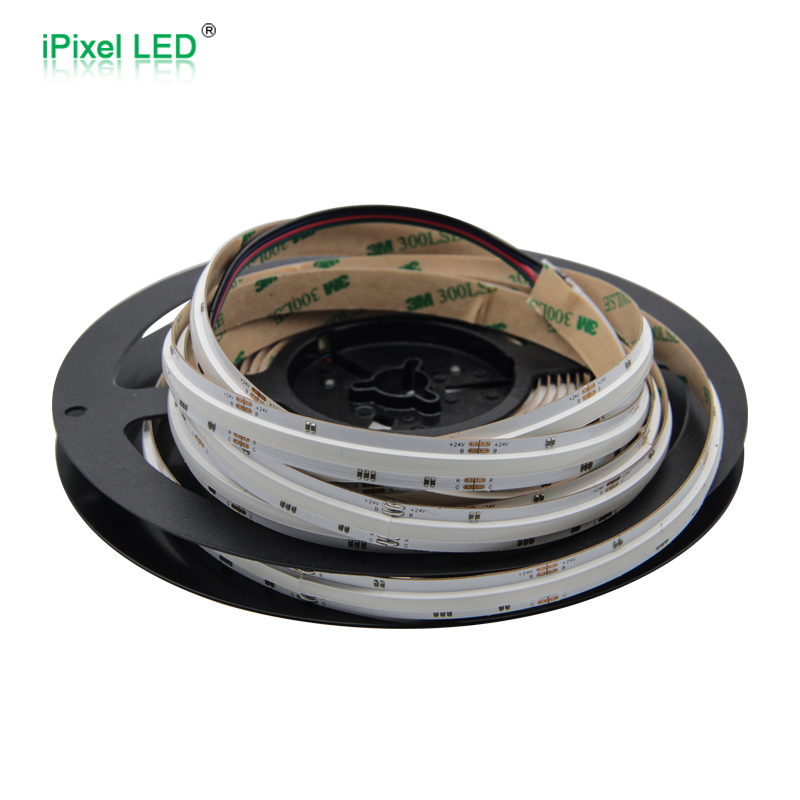

COB RGB LED flexible strip 1134LEDs/m DC24V
描述
Description
-High density, the light is even and soft
-High efficiency, remarkable energy saving effect
-Intelligent lighting, colorful RGB
-Double layer 2oz PCB, balancing voltage drop, heat dissipation and flexibility.
-Chip longitudinal distribution, high reliability;
-Standard 5M/roll, length can be customized
Share to
规格说明
Product Parameter
| PN | S0121134ZC3PZ |
| Voltage | DC24V |
| Power | 15W/m |
| SMD Type | COB |
| LED Quantity | 1134LEDs/m |
| View Color | RGB |
| Dimension | 5000*12mm |
| Wavelength | R:620-625 G:520-525 B:460-465nm |
| Lumens/m | R:114 G:470 B:67 lm |
| PCB Color | White |
| Beam Angle | 180° |
| Minimum Cutting Length | 55.55mm |
| IP Rate | IP20/IP65 |
Dimension (unit:mm)
IP Rate
