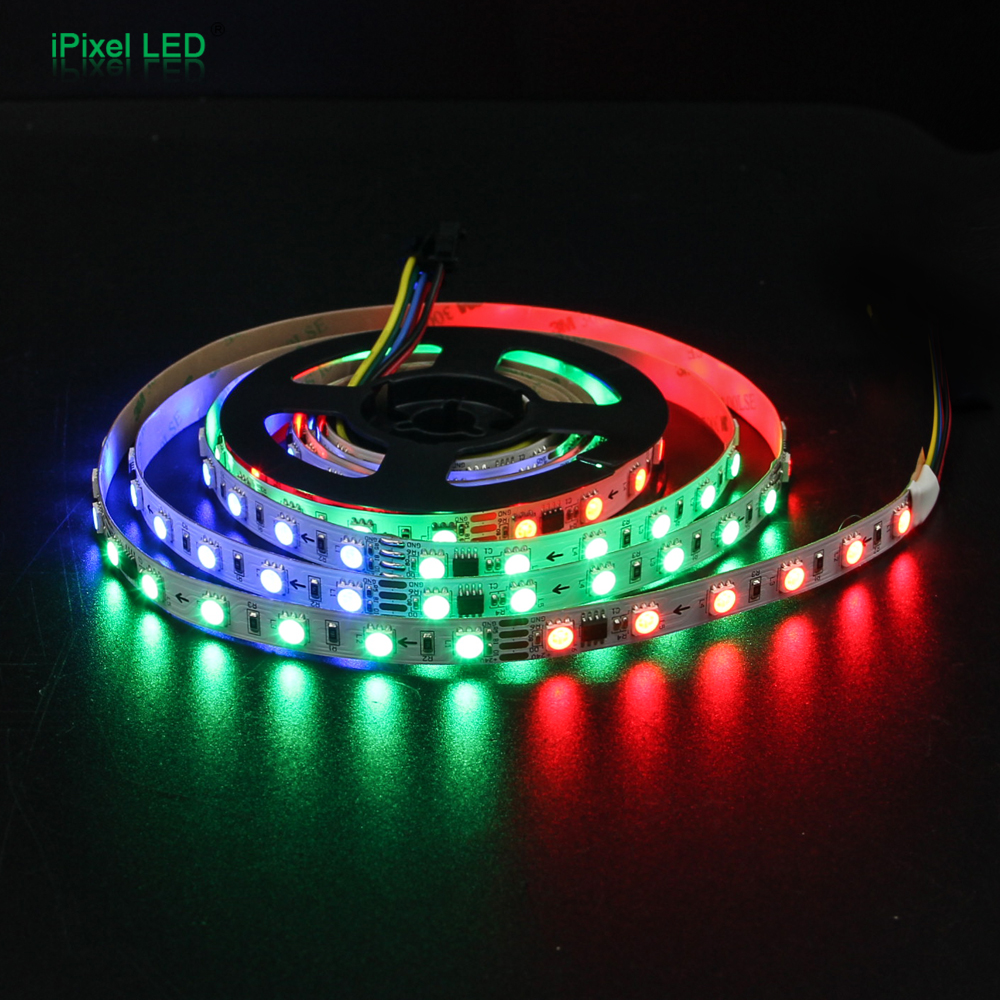

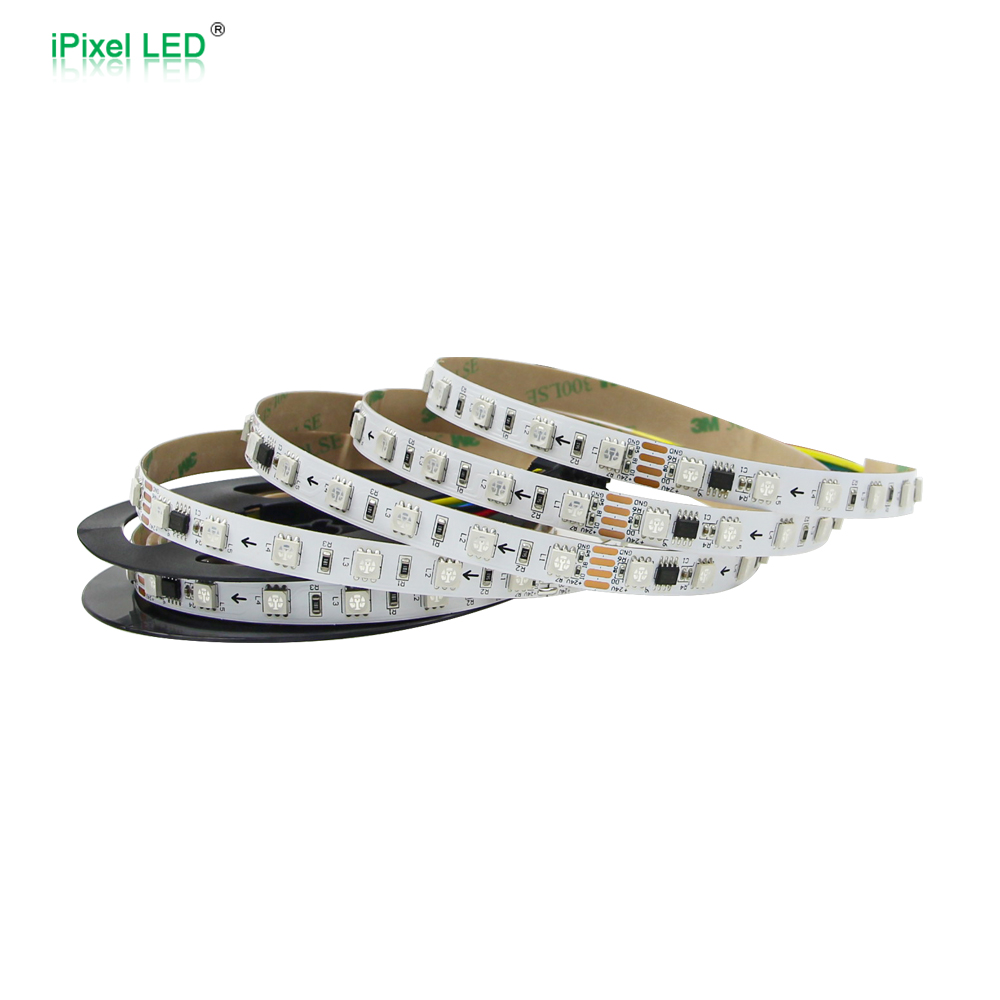

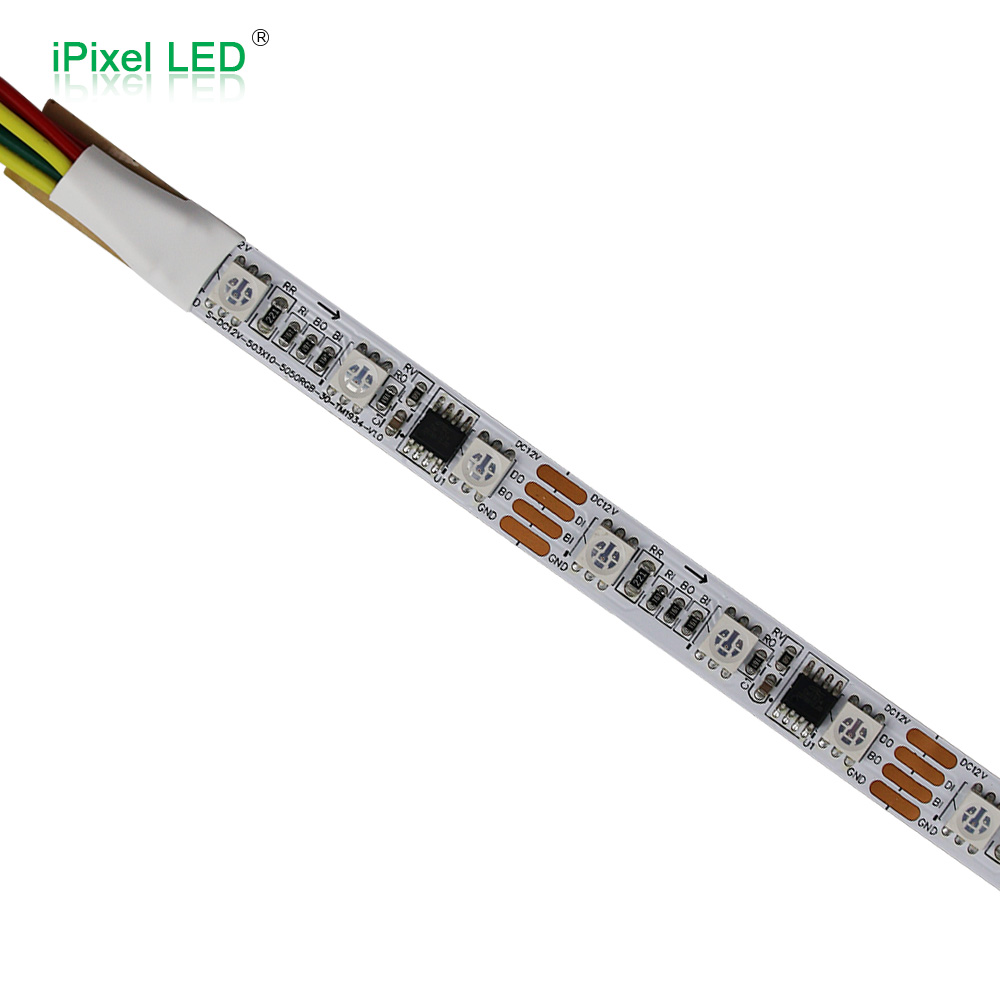

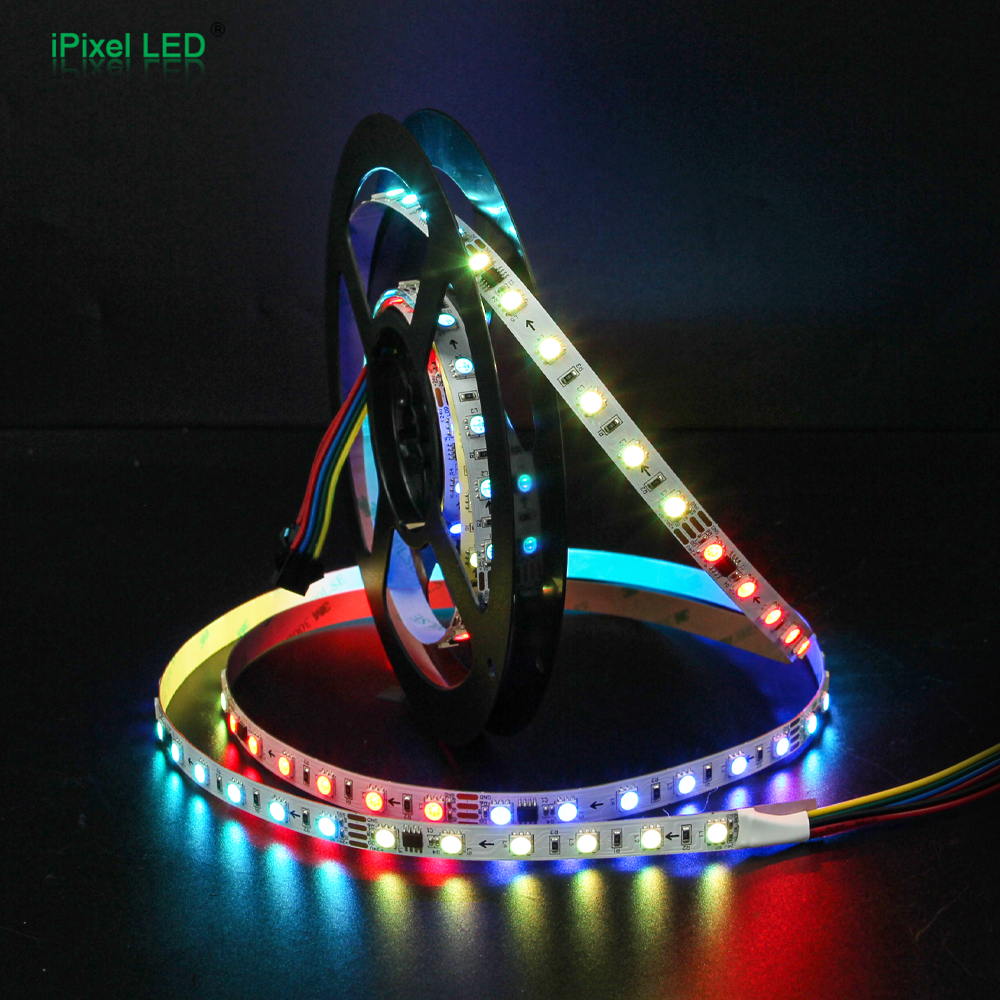

Dual signal TM1934 5050 RGB LED strip 60LEDs/m DC12V/24V
描述
- 5050 high brightness led chip, 60LEDs/M
- SPI dual signal, when one break, the rest LEDs still work well
- FPC color: white, 1+2 OZ copper thickness FPC
- Standard length 5m per roll, the length also can be customized
Share to
规格说明
Product Parameter
| PN | S010060CB3SE0 | S010060CC3SE0 |
| Voltage | DC12V | DC24V |
| LED Type | SMD5050 | SMD5050 |
| LED Quantity | 60LEDs/m | 60LEDs/m |
| Color | RGB | RGB |
| Dimension | 5000*10mm | 5000*10mm |
| Cutting unit | 50mm | 100mm |
| Lumen/m | R:94 G:247 B:53Lm | R:94 G:247 B:53Lm |
| Power | 14.4W/m | 14.4W/m |
| Control | SPI/TM1934 | SPI/TM1934 |
Pixel/M | 20 | 10 |
| O.T | -25℃ ~ 60℃ | -25℃ ~ 60℃ |
Dimension (unit:mm)
IP Rate
