Skinny SK6812 RGB strip 144LEDs/M DC5V
描述
Description

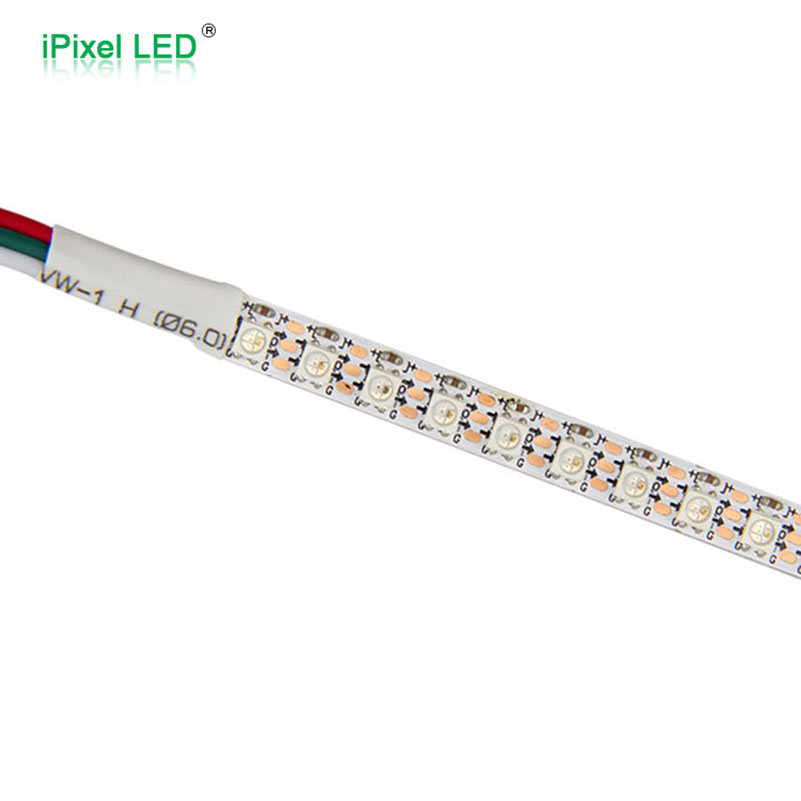

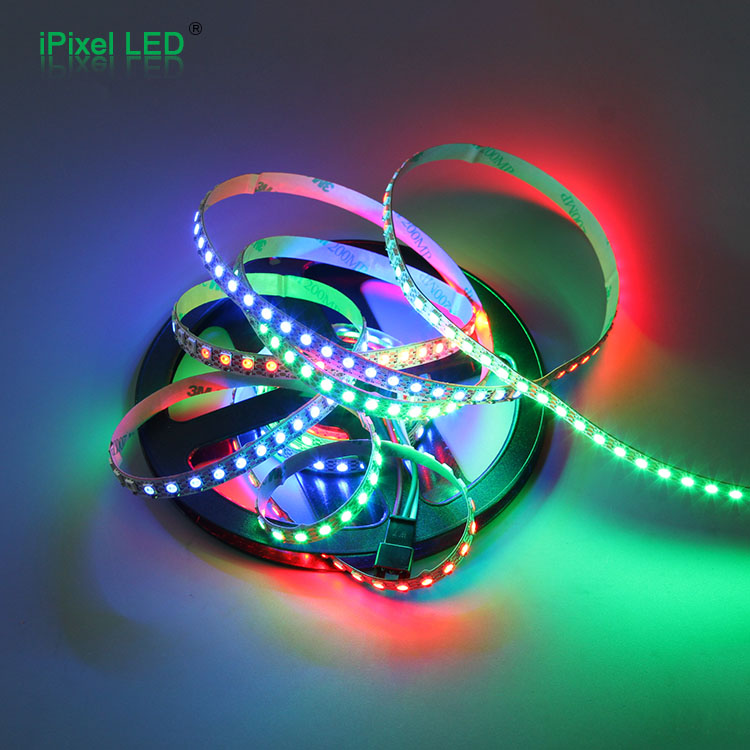

Addressable LED Strip has 144pcs SMD3535 RGB Built in IC Chips
144 Pixels per meter, each single LED per unit and cut-able
The PCB is 1+2 Ounce copper
All the soldering Pads are very large
White PCB, DC5V voltage
1 Meters per reel, Customized sizes are also available

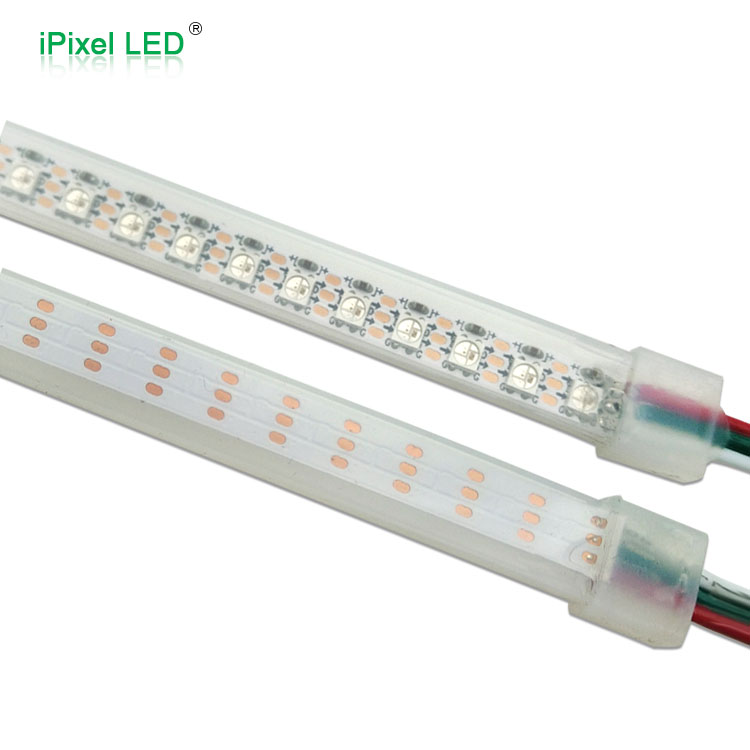

3Pin JST SM connector, IP65 waterproof by silicon tube housing
Share to
规格说明
Product Parameter
| PN | S007144DA3SA1 |
| Voltage | DC5V |
| LED Type | SMD 3535 RGB |
| LED Quantity | 144LEDs/m |
| Dimension | 1000*7mm |
| Protocol | SPI - SK6812 |
| PCB Color | White/Black |
| Power | 24W/m |
| Pixel/m | 144PCS |
| O.T | -25℃ ~ 60℃ |
Dimension (unit:mm)
IP Rate
